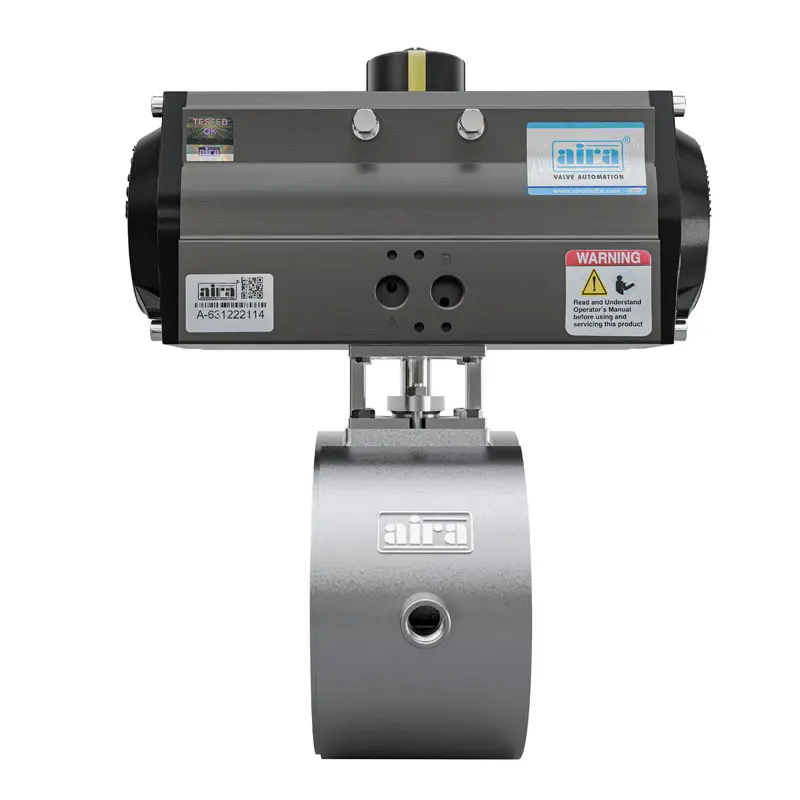

Wafer Type Jacketed Ball Valve

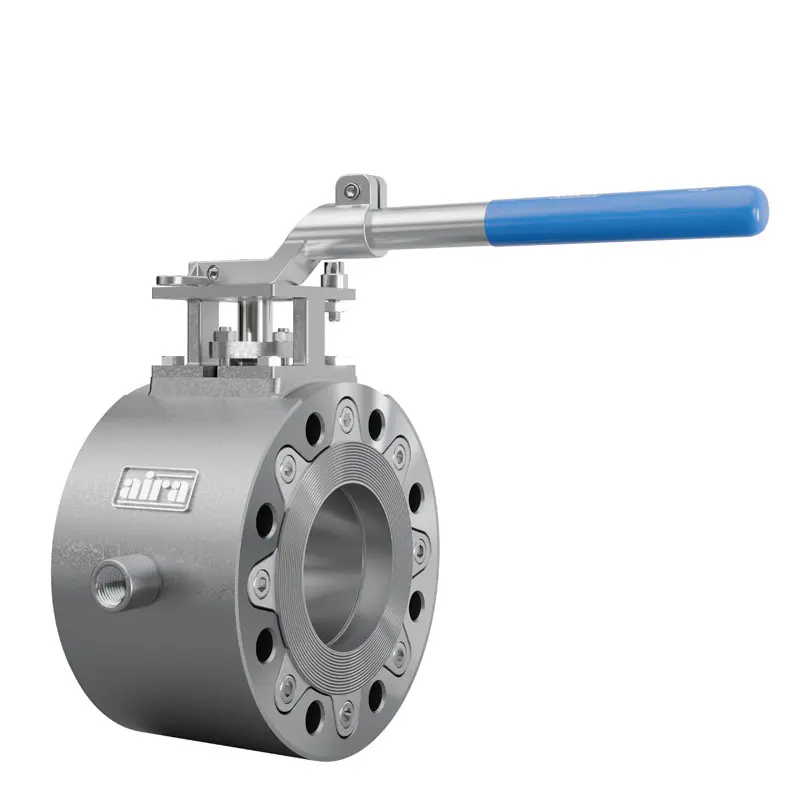

Hand Lever Operated Wafer Type Jacketed Ball Valve

Specification	Details

Design & Manufacturer

ASME B16.34 / BS EN ISO 17292

Valve Face-to-Face Dimension

As Per Manufacturer Standard

Inspection & Testing

API 598 / ISO-5208 / BS EN 12266-1

Leakage Class

ISO 5208 Class VI / ANSI FCI 70-2 B16.104

Flange Standard Conformity

ASME B16.5 150#

Size Range

1″ to 4″ Wafer Type Jacketed

Temperature Range

PTFE: Up to 180°C / RPTFE: Up to 220°C / CFT & GFT: 200°C

Pressure Class

150#

Media

Air / Water / Oil / Gas

Body Material

S.G Iron (SGI), WCB, CF8, CF8M, CF3M, SS 304L, Duplex, Hast Alloy, Monel

Ball Material

CF8, CF8M, WCB + ENP, Hast Alloy, Duplex, Monel, CF3M

Ball Type

Solid

Stem Material

AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel

Seat Material

PTFE, RPTFE, CFT, GFT, Modified PTFE, AIRA-250, Nylon, Devlon, PEEK

Description

Features & Benefits

1- Compact Single Piece Design.

2- Blow Out Proof Stem.

3- ISO 5211 Mounting Pad.

Description

Features & Benefits

1- Compact Single Piece Design.

2- Blow Out Proof Stem.

3- ISO 5211 Mounting Pad.
