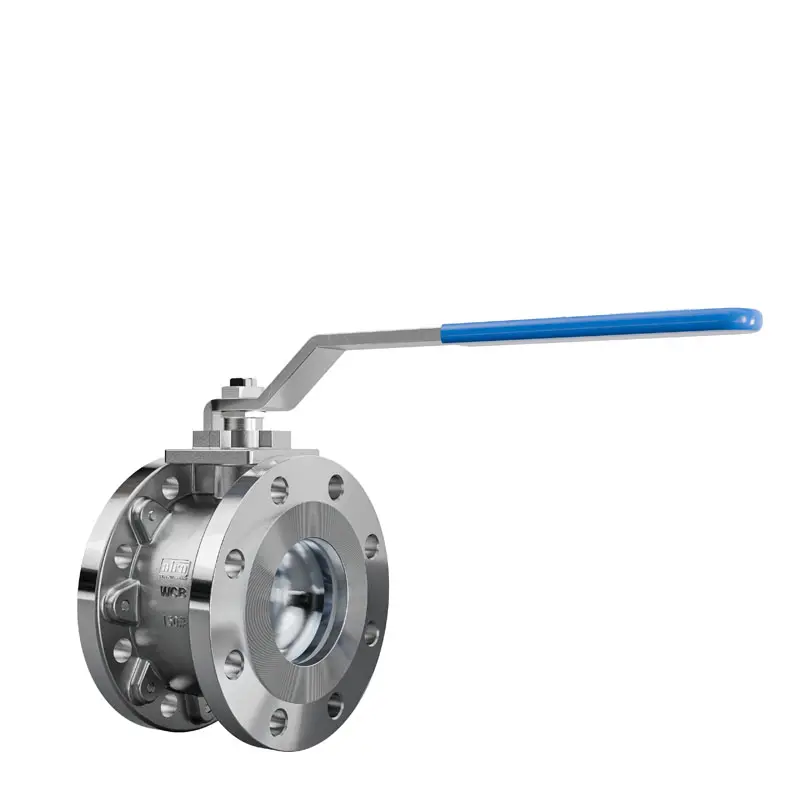

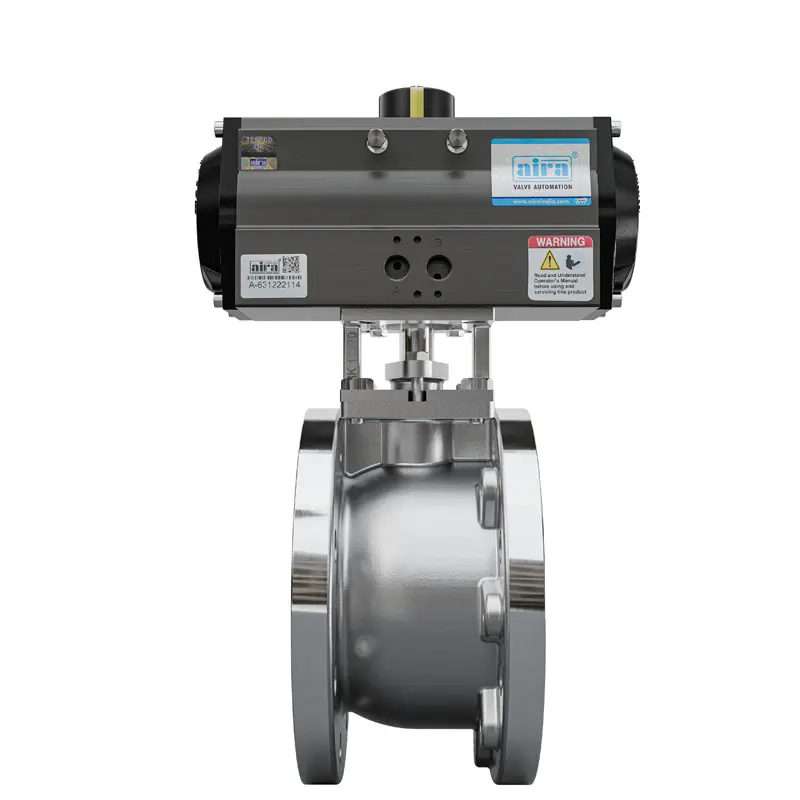

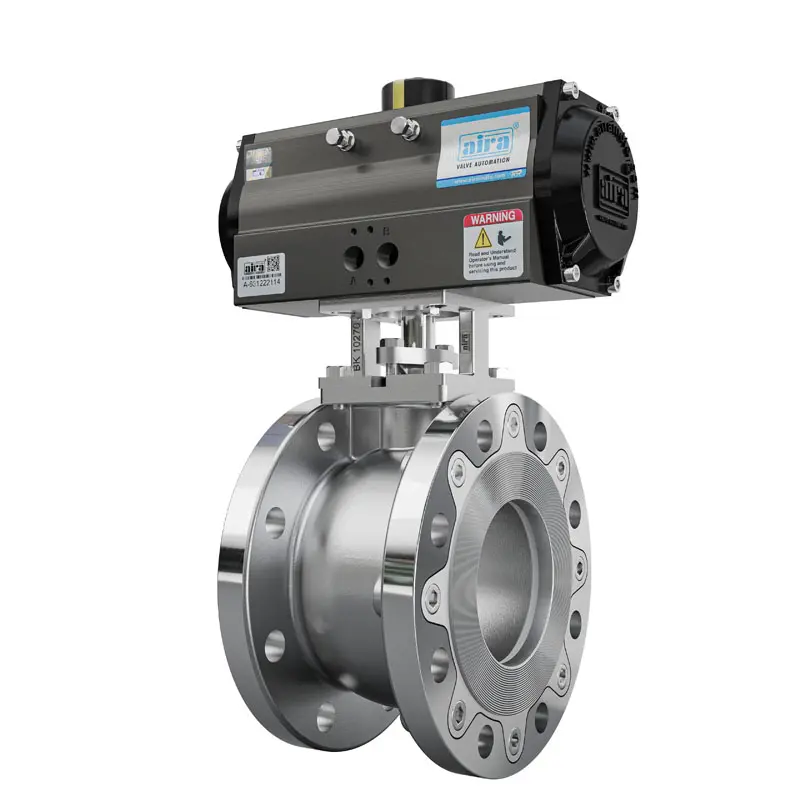

Wafer Type Ball Valve

Specification & Standard

Here’s the table summarizing the specifications you’ve provided for this valve design and manufacturing:

Parameter	Description
Design & Manufacturer	ASME B 16.34 / BS EN ISO 17292
Valve Face to Face Dimension	As Per Manufacturer Standard
Flange Standard Conformity	ASME B 16.5 150#
Inspection & Testing	API 598 / ISO – 5208 / BS EN 12266-1
Body Material	S.G Iron (SGI), WCB, CF8, CF8M, CF3M, SS 304L, Duplex, Hast Alloy, Monel
Ball Material	CF8, CF8M, WCB + ENP, Hast Alloy, Duplex, Monel, CF3M
Ball Type	Solid
Certification	POD, CE, Fire Safe
Size Range	1/2″ to 4″ Wafer Type
Temperature Range	Up to 180°C
Pressure Class	150#
Media	Air / Water / Oil & Gas
Stem Material	AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel
Seat Material	PTFE, RPTFE, CFT, GFT, Modified PTFE, AIRA-250, Nylon, Devlon, PEEK
Flange Drilling	ASME B 16.5 Class 150# / 300# / DIN / JIS

Description

Features & Benefits

1- Compact Single Piece Design.

2- Blow Out Proof Stem.

3- ISO 5211 Mounting Pad.

Description

Features & Benefits

1- Compact Single Piece Design.

2- Blow Out Proof Stem.

3- ISO 5211 Mounting Pad.
