Sanitary Flush Bottom Ball Valve Reduce Bore

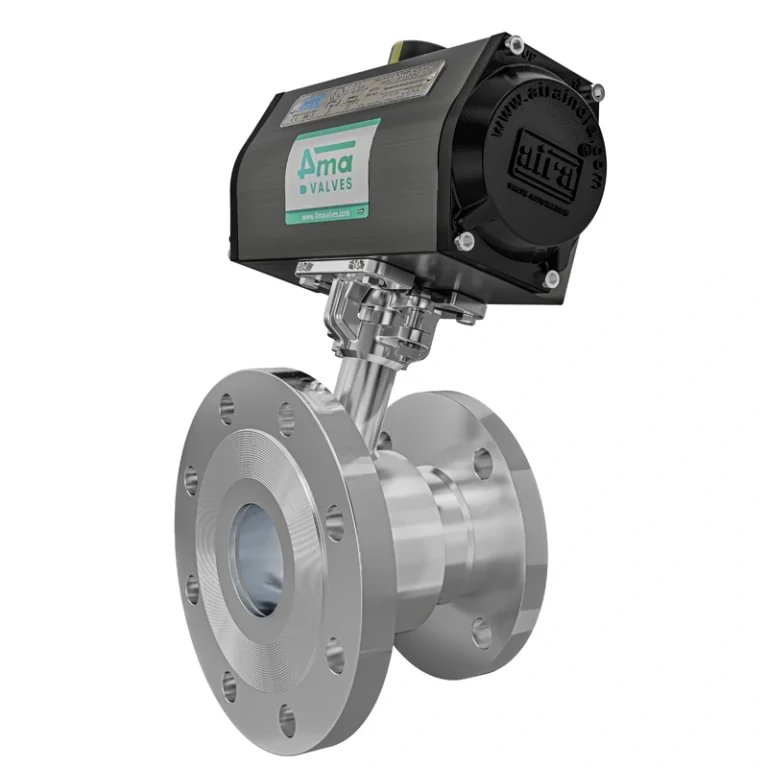

Pneumatic Sanitary Flush Bottom Ball Valve Reduce Bore

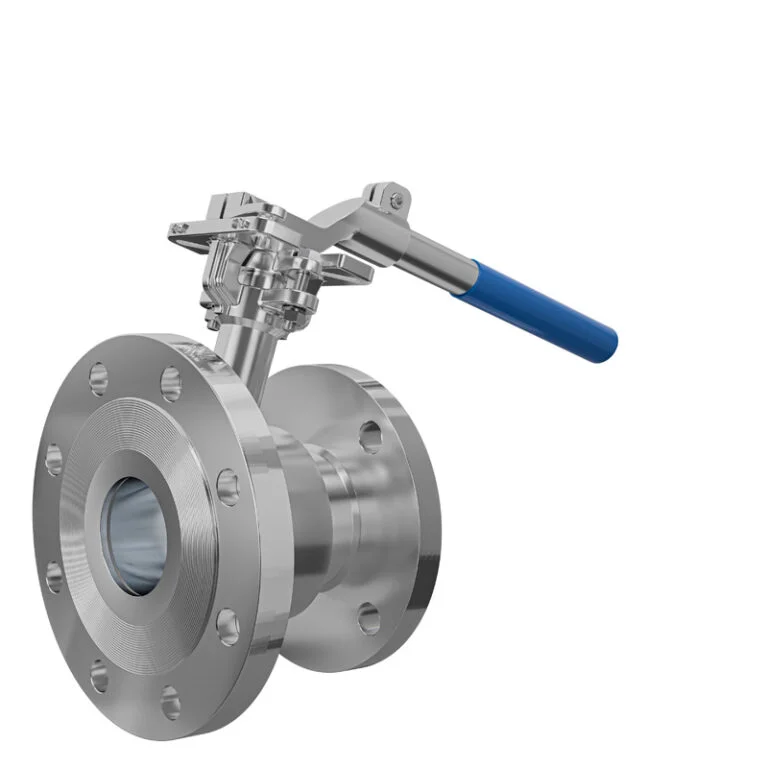

Hand Lever Operated Sanitary Flush Bottom Ball Valve Reduce Bore
Pneumatic Sanitary Flush Bottom Ball Valve Reduce Bore
Hand Lever Operated Sanitary Flush Bottom Ball Valve Reduce Bore
Pneumatic Sanitary Flush Bottom Ball Valve Reduce Bore
Hand Lever Operated Sanitary Flush Bottom Ball Valve Reduce Bore
Pneumatic Sanitary Flush Bottom Ball Valve Reduce Bore
Hand Lever Operated Sanitary Flush Bottom Ball Valve Reduce Bore
Specs
Specification Details
Model FBRF
Operation
– Manual (lever & gear box)
– Pneumatic (D/A & S/A actuator)
– Motorized
Sizes
2’’ to 10’’ (40mm to 250mm) (Higher size on request)
Working Pressure Up to 10 kg/cm²
Temperature Up to 250°C
Leakage Class VI
Material of Construction
CF8 / CF8M / CF3M (Special alloy on request)
Seals
PTFE / CFT / GFT
Media
AIR / WATER / OIL / POWDER / VACUUM
Connection
– ASME B16.5 150#
– ASME B16.5 300#
