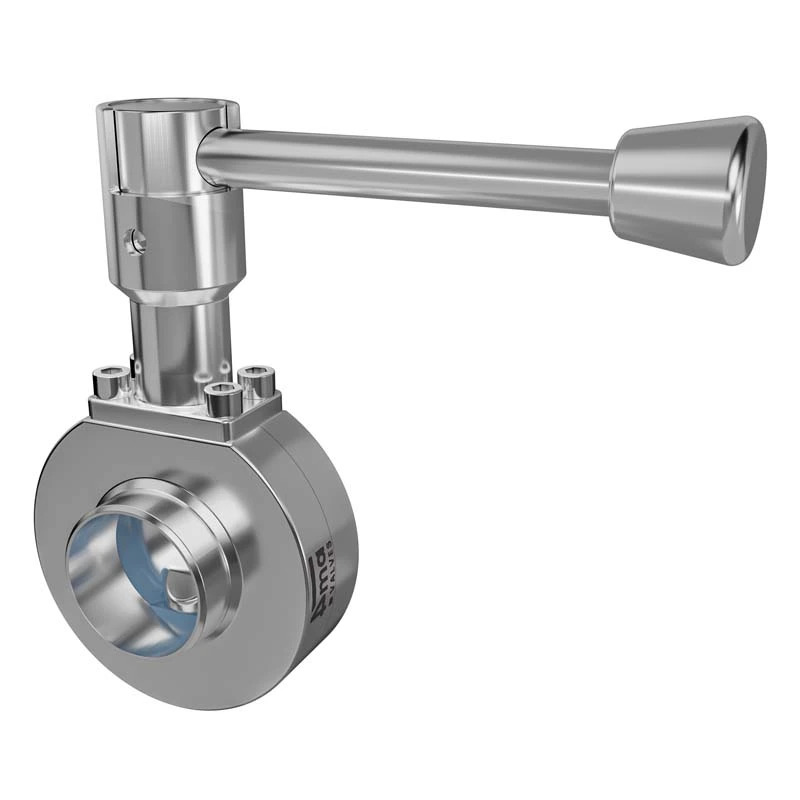

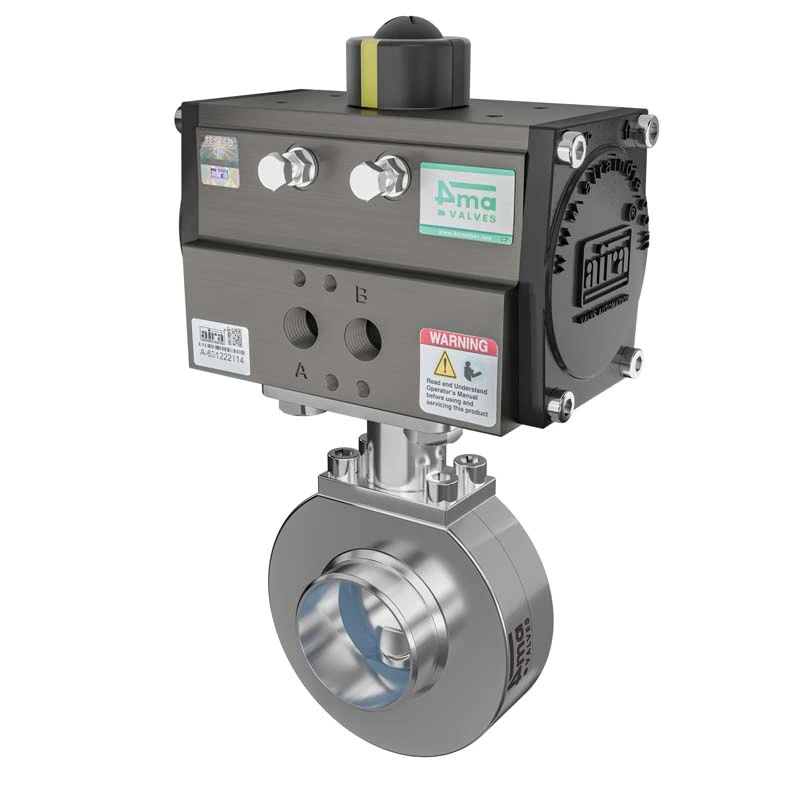

Sanitary Butterfly Valve Weldable End

Specification	Details
Model	PBB
Operation	– Manual (lever & gear box) – Pneumatic (D/A & S/A actuator) – Motorized
Sizes	1’’ to 8’’ (25mm to 200mm) (Higher size on request)
Working Pressure	– 25 to 100mm: Up to 10 kg/cm² – 125 to 200mm: Up to 4 kg/cm²
Temperature	Up to 180°C
Leakage	Class V to VI
Material of Construction	S.S.304 / S.S.304L / S.S.316 / S.S.316L (Special alloy on request)
Seals	SILICON / WHITE EPDM (Food Grade)
Media	AIR / WATER / OIL / POWDER / VACUUM
Connection	– ASME BPE, BS4825‐3 (Standard) – DIN32676‐A (On request) – ISO1127 (On request)

Description
