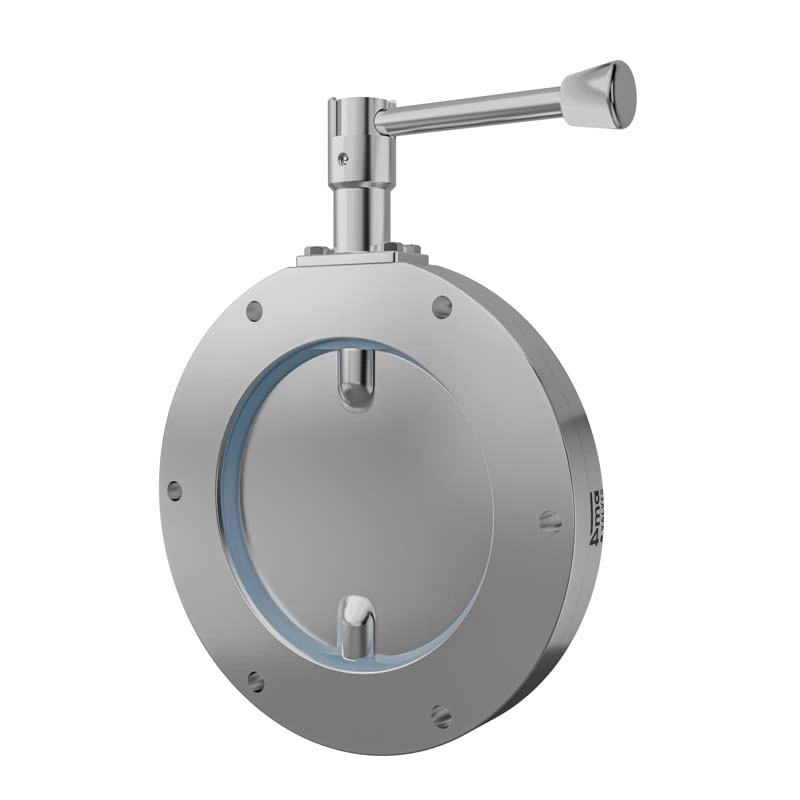

Sanitary Butterfly Valve Wafer End

Specification	Details
Model	PBW
Operation	Manual (Lever & Gear Box), Pneumatic (D/A & S/A Actuator), Motorized
Sizes	1’’ to 20’’ (25mm to 500mm)
Working Pressure	25 to 100mm: Up to 10 kg/cm²125 to 500mm: Up to 4 kg/cm²
Temperature	Up to 180°C
Leakage	Class V to VI
Material of Construction	S.S.304 / S.S.304L / S.S.316 / S.S.316L (Special alloy on request)
Seals	Silicon / White EPDM (Food Grade)
Media	Air / Water / Oil / Powder / Vacuum
Connection	MFG. Standard ASME B16.5 150# (On Request)ASME B16.5 300# (On Request)BS10 Table D (On Request)
