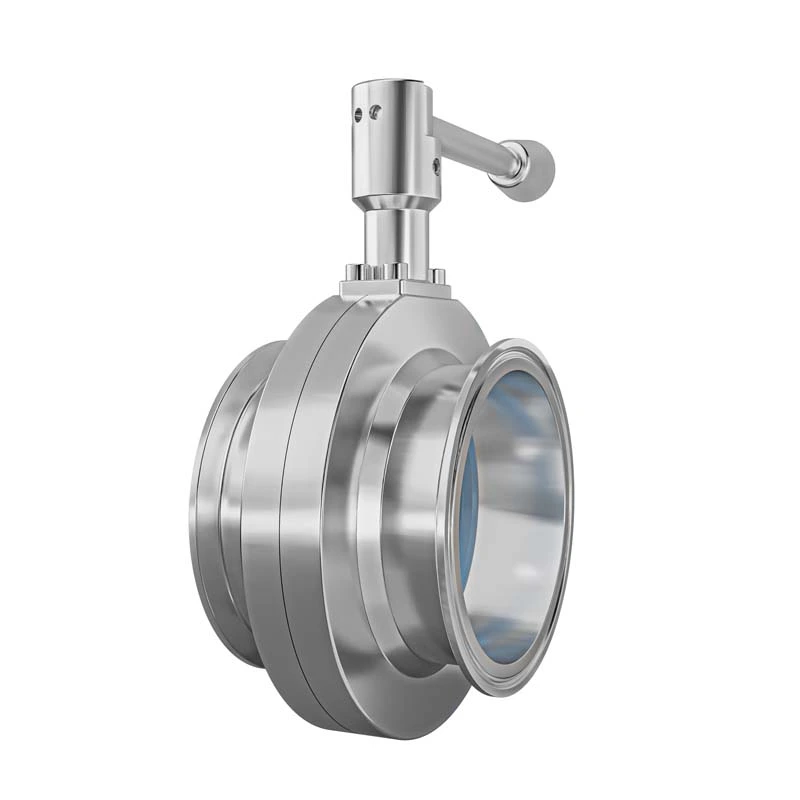

Sanitary Butterfly Valve Tc End

Specification	Details
Model	PBT

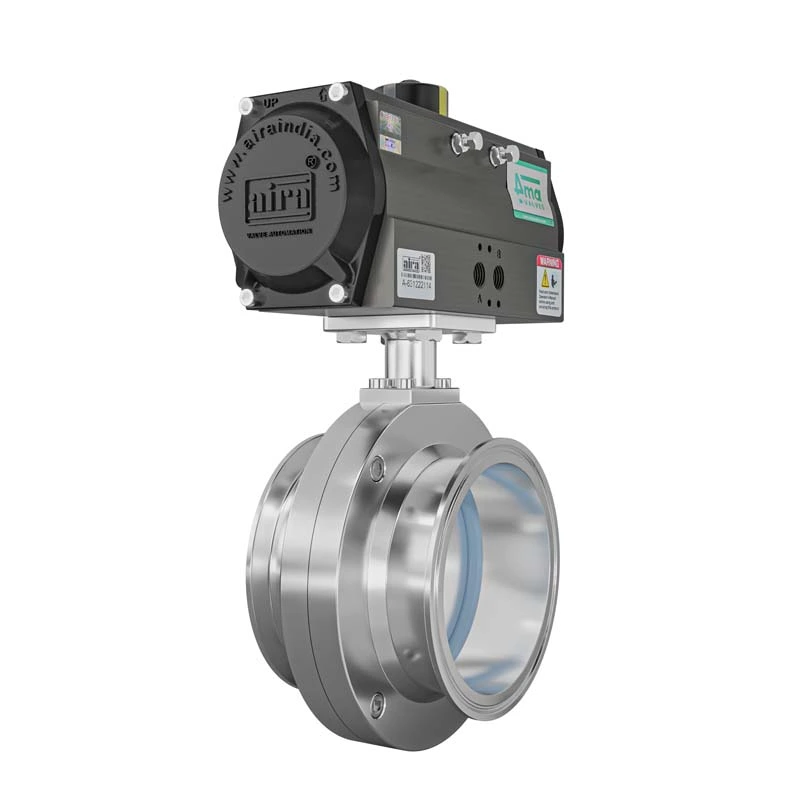

Operation	Manual (Lever & Gear Box), Pneumatic (D/A & S/A Actuator), Motorized
Sizes	1’’ to 12’’ (25mm to 300mm)
Working Pressure	25 to 100mm: Up to 10 kg/cm²125 to 300mm: Up to 4 kg/cm²
Temperature	Up to 180°C
Leakage	Class V to VI
Material of Construction	S.S.304 / S.S.304L / S.S.316 / S.S.316L (Special alloy on request)
Seals	Silicon / White EPDM (Food Grade)
Media	Air / Water / Oil / Powder / Vacuum
Connection	ASME BPE, BS4825‐3 (Standard)DIN32676‐A, ISO1127 (On Request)

Description

Talk to our team for orders, pricing, and quotations, fast response guaranteed.
