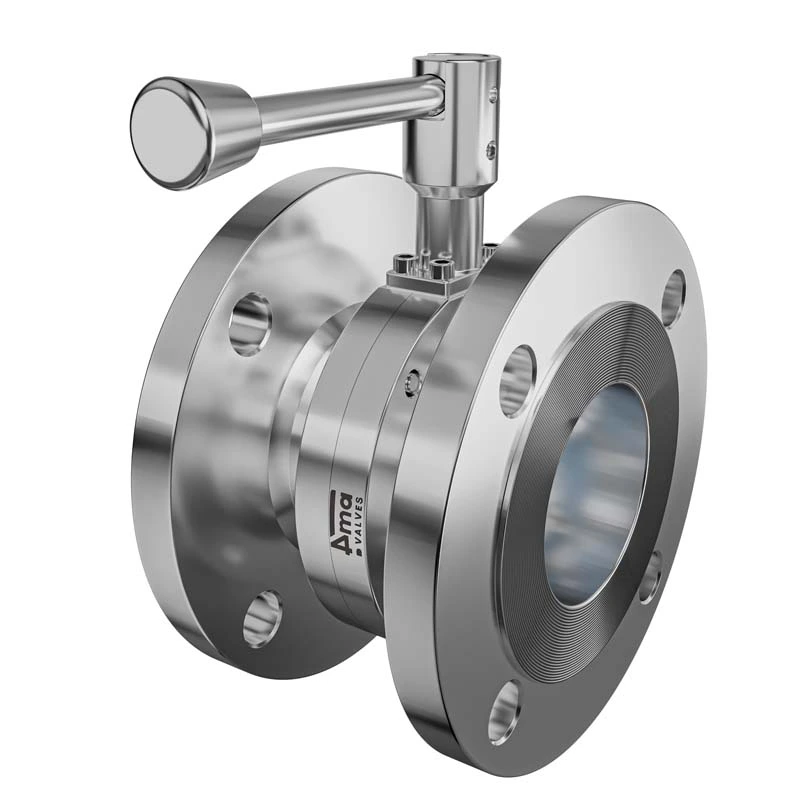

Sanitary Butterfly Valve Flanged End

Specification	Details
Model	PBF

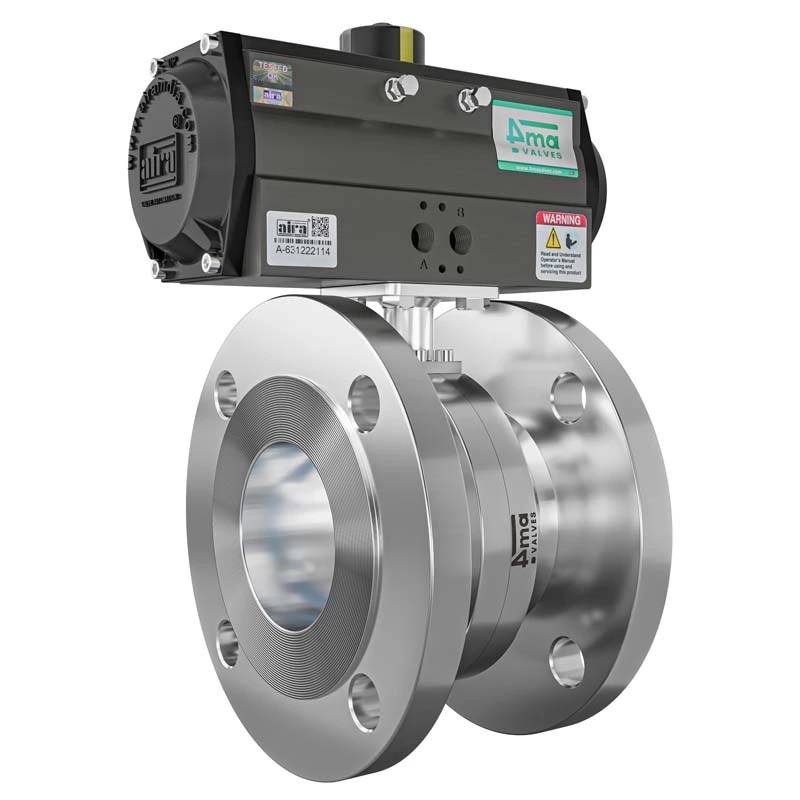

Operation	– Manual (lever & gear box) – Pneumatic (D/A & S/A actuator) – Motorized
Sizes	1’’ to 20’’ (25mm to 500mm)
Working Pressure	– 25 to 100mm: Up to 10 kg/cm² – 125 to 500mm: Up to 4 kg/cm²
Temperature	Up to 180°C
Leakage	Class V to VI
Material of Construction	S.S.304 / S.S.304L / S.S.316 / S.S.316L (Special alloy on request)
Seals	SILICON / WHITE EPDM (Food Grade)
Media	AIR / WATER / OIL / POWDER / VACUUM
Connection	– ASME B16.5 150# (Standard) – ASME B16.5 300# (On request) – BS10 Table D (On request)
