| Specification | Details |
|---|
| Size Range | 1.1/2″ to 36″ |
| Temperature Range | -25°C to 250°C (Soft Seating) |
| Design & Manufacturer | API 609 Category B / BS EN 593 |
| Valve Face To Face | API 609 Category B |
| Flange Standard | ANSI B 16.5 Class 150 |
| Inspection & Testing | API 598 / EN 12266 Part – 1 |
| Fire Safe Testing | API 607 |
| Pressure Temperature Rating | ASME / ANSI B 16.34 |
| Seat Leakage Class | Class VI |
| Top Flange Drilling | ASME B16.5 / 16.47 Class 150 |
| End Connection | Wafer Type 150# PN-10 |
| Operating | Pneumatic Actuator Operated |
| Plate Mounting | Namur Standard |
| Pressure Class | 150#, PN-10 |
| Media | Water, Oil, Steam, Air, Gas, Chemical |
| Leakage Class | Class VI |
| Body Material | CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Disc Material | CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 |
| Seat Material | PTFE |
| Certification | Design CE Approved, SIL3 Approved |
| Construction Type | Double Eccentric Disc Design |

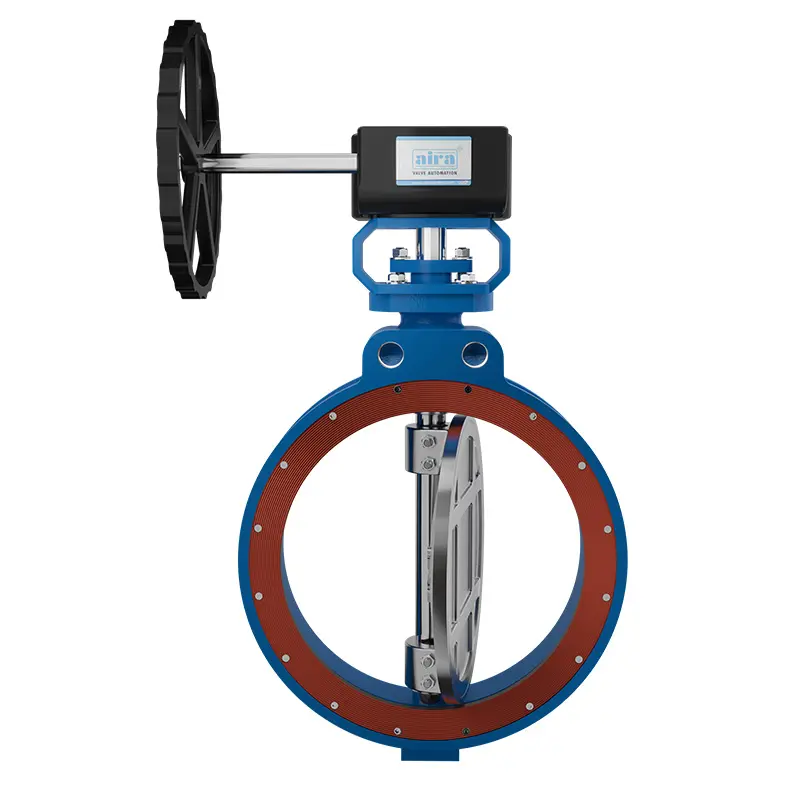

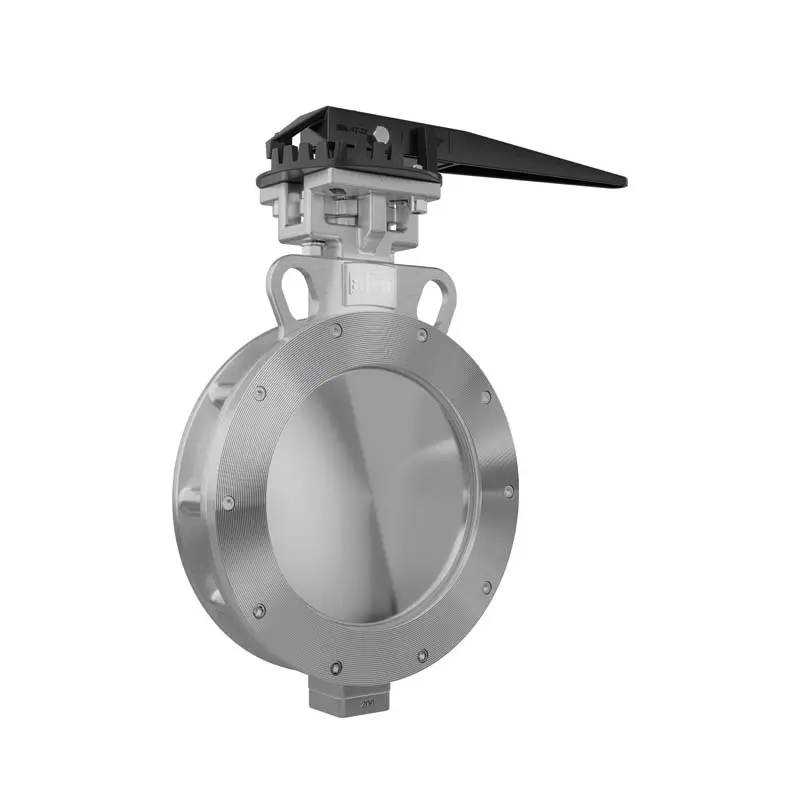

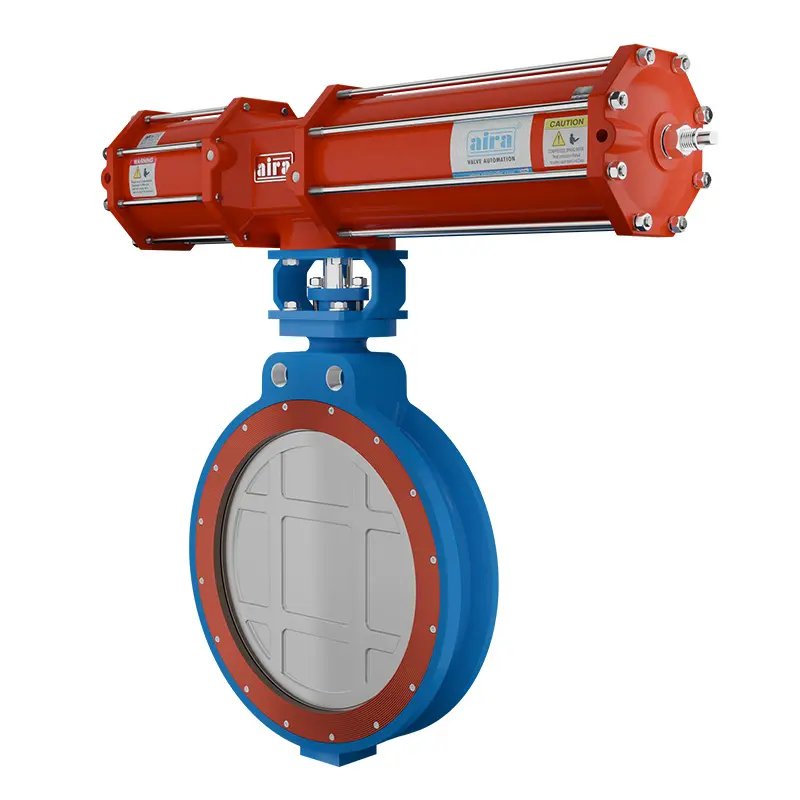

The aira High Performance Butterfly Valve with a spherical disc design is engineered for superior flow control and durability.
1 – Spherical Disc: Optimizes flow dynamics and reduces turbulence, allowing for precise control.
2 – Enhanced Performance: Built to perform reliably under high-pressure and high-temperature conditions.
3 – Durable Construction: Made from high-quality materials to withstand harsh environments and extend service life.
4 – Effective Sealing: Advanced sealing mechanism ensures minimal leakage and tight shut-off.
5 – Wide Application Range: Suitable for chemical processing, power generation, water treatment, and other demanding industries.
The aira High Performance Butterfly Valve with a spherical disc design is engineered for superior flow control and durability.
1 – Spherical Disc: Optimizes flow dynamics and reduces turbulence, allowing for precise control.
2 – Enhanced Performance: Built to perform reliably under high-pressure and high-temperature conditions.
3 – Durable Construction: Made from high-quality materials to withstand harsh environments and extend service life.
4 – Effective Sealing: Advanced sealing mechanism ensures minimal leakage and tight shut-off.
5 – Wide Application Range: Suitable for chemical processing, power generation, water treatment, and other demanding industries.
