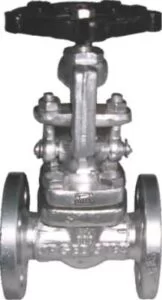

FORGED STAINLESS STEEL GATE VALVE BOLTED BONNET

Specifications

Specification	Class 150
Body / Bonnet	ASTM A 182 Gr F 304 \| F 316
Trims	18 Cr \| 18 Cr 8 Ni \| 18 Cr 10 Ni -2MO
Mfg Std	API 602 \| BS 5352
Insp & Test Std	API 598 \| BS 6755
Ends	Flanged to ASME B 16.5 RF
Hyd-Test Pressure (Body)	425 Psig (30 Kg/Cm²)
Hyd-Test Pressure (Seat)	300 Psig (21 Kg/Cm²)
Size Range	15 mm to 50 mm

Description

This Valve also available in the following Class

Specification	Class 300	Class 600	Class 800	Class 1500	Class 2500
Body / Bonnet	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316
Trims	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO
Mfg Std	API 602 \| BS 5352	API 602 \| BS 5352	API 602 \| BS 5352	API 602 \| BS 5352	API 602 \| BS 5352
Insp & Test Std	API 598 \| BS 6755	API 598 \| BS 6755	API 598 \| BS 6755	API 598 \| BS 6755	API 598 \| BS 6755
Ends	Flanged to ASME B 16.5 RF	Flanged to ASME B 16.5 RF (600#)	Screwed to BSP \| BSPT \| NPT, Socket Weld to ASME B 16.11	Screwed to BSPT \| NPT, Socket Weld to ASME B 16.11	Screwed to BSPT \| NPT, Socket Weld to ASME B 16.11
Hyd-Test Pressure (Body)	1100 Psig (77 Kg/Cm²)	2175 Psig (153 Kg/Cm²)	3000 Psig (211 Kg/Cm²)	5400 Psig (379 Kg/Cm²)	9000 Psig (633 Kg/Cm²)
Hyd-Test Pressure (Seat)	800 Psig (56 Kg/Cm²)	1600 Psig (112 Kg/Cm²)	2000 Psig (140 Kg/Cm²)	4000 Psig (281 Kg/Cm²)	6600 Psig (464 Kg/Cm²)
Size Range	15 mm to 50 mm	15 mm to 40 mm	15 mm to 50 mm	15 mm to 40 mm	15 mm to 40 mm

Description

This Valve also available in the following Class

Specification	Class 300	Class 600	Class 800	Class 1500	Class 2500
Body / Bonnet	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316	ASTM A 182 Gr F 304 \| F 316
Trims	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO	18 Cr 8 Ni \| 18 Cr 10 Ni -2MO
Mfg Std	API 602 \| BS 5352	API 602 \| BS 5352	API 602 \| BS 5352	API 602 \| BS 5352	API 602 \| BS 5352
Insp & Test Std	API 598 \| BS 6755	API 598 \| BS 6755	API 598 \| BS 6755	API 598 \| BS 6755	API 598 \| BS 6755
Ends	Flanged to ASME B 16.5 RF	Flanged to ASME B 16.5 RF (600#)	Screwed to BSP \| BSPT \| NPT, Socket Weld to ASME B 16.11	Screwed to BSPT \| NPT, Socket Weld to ASME B 16.11	Screwed to BSPT \| NPT, Socket Weld to ASME B 16.11
Hyd-Test Pressure (Body)	1100 Psig (77 Kg/Cm²)	2175 Psig (153 Kg/Cm²)	3000 Psig (211 Kg/Cm²)	5400 Psig (379 Kg/Cm²)	9000 Psig (633 Kg/Cm²)
Hyd-Test Pressure (Seat)	800 Psig (56 Kg/Cm²)	1600 Psig (112 Kg/Cm²)	2000 Psig (140 Kg/Cm²)	4000 Psig (281 Kg/Cm²)	6600 Psig (464 Kg/Cm²)
Size Range	15 mm to 50 mm	15 mm to 40 mm	15 mm to 50 mm	15 mm to 40 mm	15 mm to 40 mm
