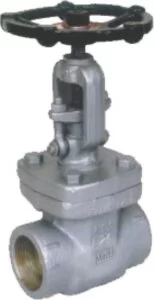

FORGED ALLOY STEEL GATE VALVE BOLTED BONNET

Specifications

Specification	Class 150
Body / Bonnet	ASTM A182 Gr F11 / F22
Trims	13 Cr
Mfg Std	API 602 / BS 5352
Insp & Test Std	API 598 / BS 6755
Ends	Flanged to ASME B16.5 RF
Hyd-Test Pressure (Body)	425 Psig (30 Kg/Cm²)
Hyd-Test Pressure (Seat)	300 Psig (21 Kg/Cm²)
Size Range	15 mm to 50 mm

Description

This valve also offer in following Class

Specification	Class 300	Class 600	Class 800	Class 1500	Class 2500
Body / Bonnet	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22
Trims	13 Cr	13 Cr	13 Cr to AISI 410	13 Cr to AISI 410	13 Cr to AISI 410
Mfg Std	API 602 / BS 5352	API 602 / BS 5352	API 602 / BS 5352	API 602 / BS 5352	API 602 / BS 5352
Insp & Test Std	API 598 / BS 6755	API 598 / BS 6755	API 598 / BS 6755	API 598 / BS 6755	API 598 / BS 6755
Ends	Flanged to ASME B16.5 RF	Flanged to ASME B16.5 RF (600#)	Screwed to BSPT / NPT Socket Weld to ASME B16.11	Screwed to BSPT / NPT Socket Weld to ASME B16.11	Screwed to BSPT / NPT Socket Weld to ASME B16.11
Hyd-Test Pressure (Body)	1100 Psig (77 Kg/Cm²)	2175 Psig (153 Kg/Cm²)	3000 Psig (211 Kg/Cm²)	5400 Psig (379 Kg/Cm²)	9000 Psig (633 Kg/Cm²)
Hyd-Test Pressure (Seat)	800 Psig (56 Kg/Cm²)	1600 Psig (112 Kg/Cm²)	2000 Psig (140 Kg/Cm²)	4000 Psig (281 Kg/Cm²)	6600 Psig (464 Kg/Cm²)
Size Range	15 mm to 50 mm	15 mm to 40 mm	15 mm to 50 mm	15 mm to 40 mm	15 mm to 40 mm

Description

This valve also offer in following Class

Specification	Class 300	Class 600	Class 800	Class 1500	Class 2500
Body / Bonnet	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22	ASTM A182 Gr F11 / F22
Trims	13 Cr	13 Cr	13 Cr to AISI 410	13 Cr to AISI 410	13 Cr to AISI 410
Mfg Std	API 602 / BS 5352	API 602 / BS 5352	API 602 / BS 5352	API 602 / BS 5352	API 602 / BS 5352
Insp & Test Std	API 598 / BS 6755	API 598 / BS 6755	API 598 / BS 6755	API 598 / BS 6755	API 598 / BS 6755
Ends	Flanged to ASME B16.5 RF	Flanged to ASME B16.5 RF (600#)	Screwed to BSPT / NPT Socket Weld to ASME B16.11	Screwed to BSPT / NPT Socket Weld to ASME B16.11	Screwed to BSPT / NPT Socket Weld to ASME B16.11
Hyd-Test Pressure (Body)	1100 Psig (77 Kg/Cm²)	2175 Psig (153 Kg/Cm²)	3000 Psig (211 Kg/Cm²)	5400 Psig (379 Kg/Cm²)	9000 Psig (633 Kg/Cm²)
Hyd-Test Pressure (Seat)	800 Psig (56 Kg/Cm²)	1600 Psig (112 Kg/Cm²)	2000 Psig (140 Kg/Cm²)	4000 Psig (281 Kg/Cm²)	6600 Psig (464 Kg/Cm²)
Size Range	15 mm to 50 mm	15 mm to 40 mm	15 mm to 50 mm	15 mm to 40 mm	15 mm to 40 mm

Talk to our team for orders, pricing, and quotations, fast response guaranteed.
