| Specification | Details |

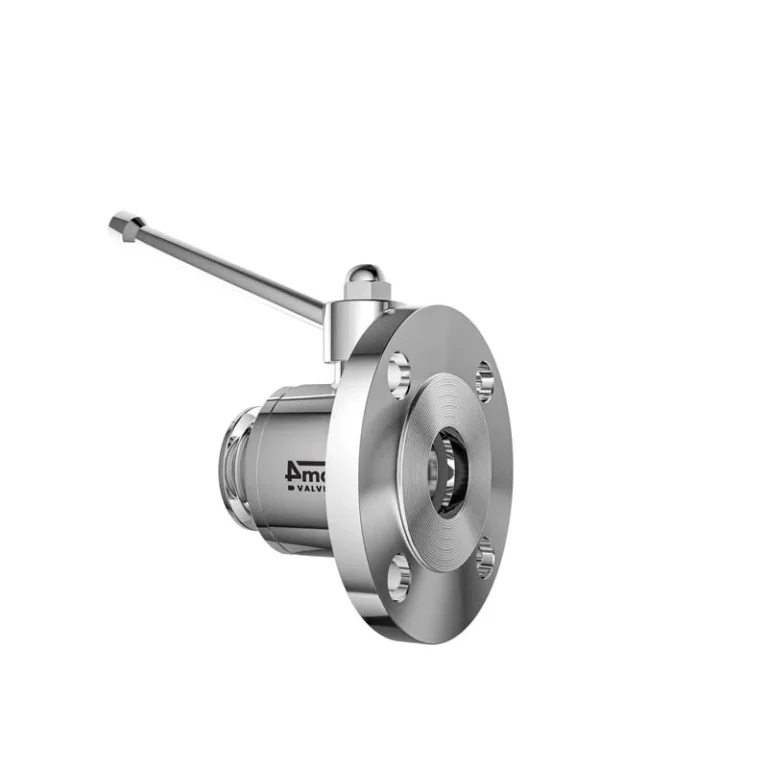

| Model | FBX |
| Operation |
– Manual (lever & gear box)
– Pneumatic (D/A & S/A actuator) – Motorized |
| Sizes |
¾’’ to 4’’ (20mm to 100mm)
|
| Working Pressure | Up to 10 kg/cm² |
| Temperature | Up to 180°C |
| Leakage | Class VI |
| Material of Construction |
CF8 / CF8M / CF3M (Special material on request)
|
| Seals |
PTFE / CFT / GFT
|
| Media |
AIR / WATER / OIL / POWDER / VACUUM
|
| Connection |
– ASME B16.5 150#
– ASME B16.5 300# – ASME BPE, BS4825‐3 (Standard) – DIN32676‐A (On request) – ISO1127 (On request) |
