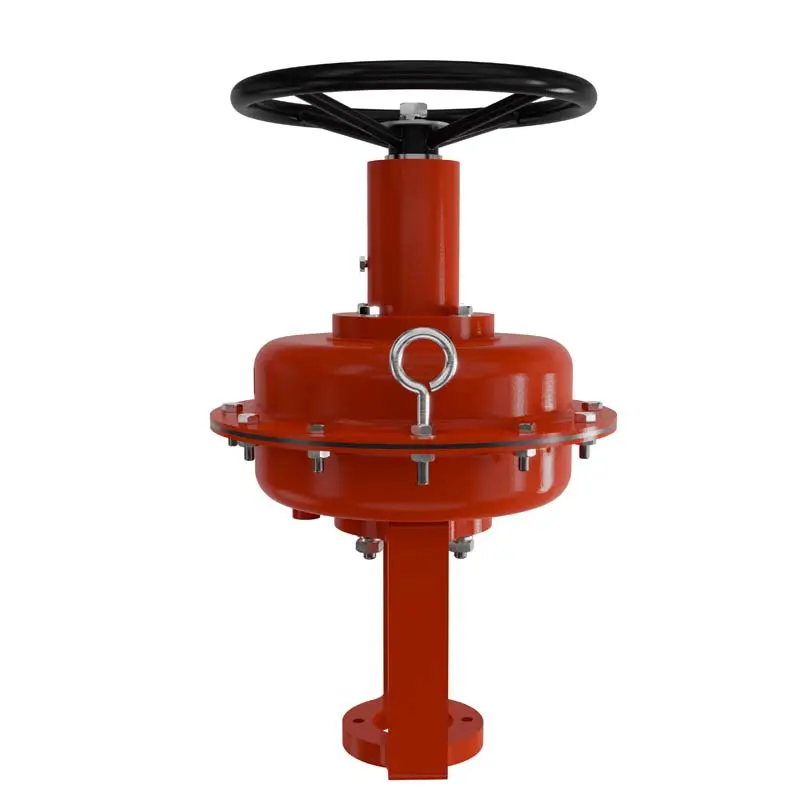

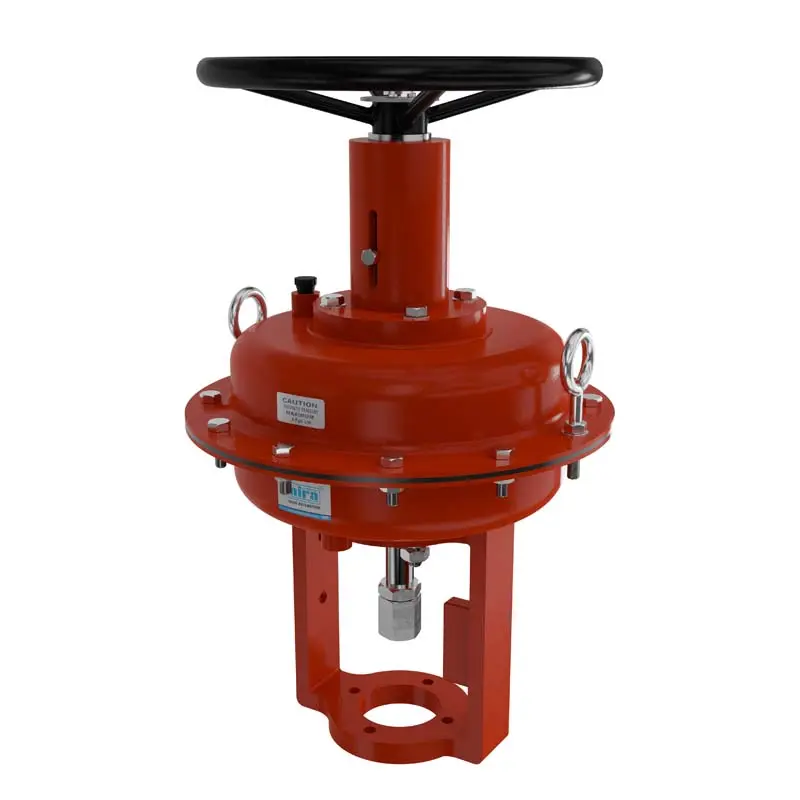

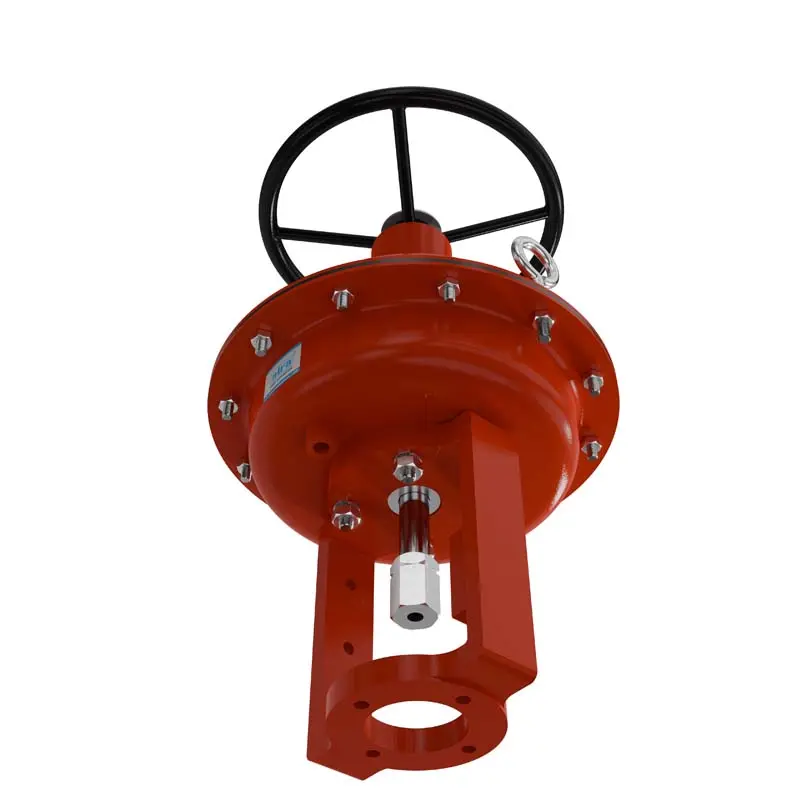

Diaphragm Actuator With Manual Over Ride

Diapphragm-Act-With-Manual-Over-Ride01 (1)

Specification & Standard

Here’s the updated table including the new specifications:

Specification	Details
Size Range	DOT-45 to DOT-315
Temperature Range	-20°C to 90°C
Working Pressure	4 to 8 Bar
Inlet Air Supply	2.5 to 4 KG/CM²
Method of Transmission	Rack and Pinion Type
Actuator Action	Direct Acting / Reverse Acting
Stem Movement	Linear
Air Fail Position	Stem Extended / Stem Retracted
Body	IC CF8 / CF8M
Caps and Rack	IC CF8 / CF8M
Pinion	S.S. 304 / S.S. 316
Seals	Buna-N / Viton
Air Pressure	Normal Air Supply Pressure: 4 KG/CM²; Max Air Supply Pressure: 8 KG/CM²
Actuator Design	ISO 5211 (Actuator can be quickly and easily mounted)
Rotation	90° – Quarter Turn
Torque	0 to 1461 NM
Mounting PCD	ISO 5211
Body Material	S.S. 304 / S.S. 316
Piston Material	304 / 316
Application	Operating for Valve

Description

Talk to our team for orders, pricing, and quotations, fast response guaranteed.

Mark & Aira Valves

At Mark & Aira Valves, we believe that exceptional quality begins with rigorous quality control processes. Our commitment to excellence is reflected in our comprehensive inspections and evaluations conducted at every stage of production.
