| Specification | Details |
|---|---|
| Size Range | 4″ to 16″ (50 MM to 600 MM) |
| Temperature Range | 180°C |
| Pressure Class | 1.6 MPa |
| Air Supply | 135 PSIG (9.3 Bar) maximum, seat varies with MOC & application |
| Body Material | S.G. Iron |
| Flapper | CF8 / CF8M |
| Sleeve | EPDM |
| Shaft | S.S. 304 |
| ‘O’ Ring | HI – Nitrile |
| DU Bush | Steel / PTFE |
| Circlip | S.S. 304 |
| Sealing Gasket | PTFE |
| Teflon Bush | Teflon |
| Seat | NBR |
| Disc | S.S. 304 |
| Pressure | PN – 6 |
| End Connection | Wafer Type |

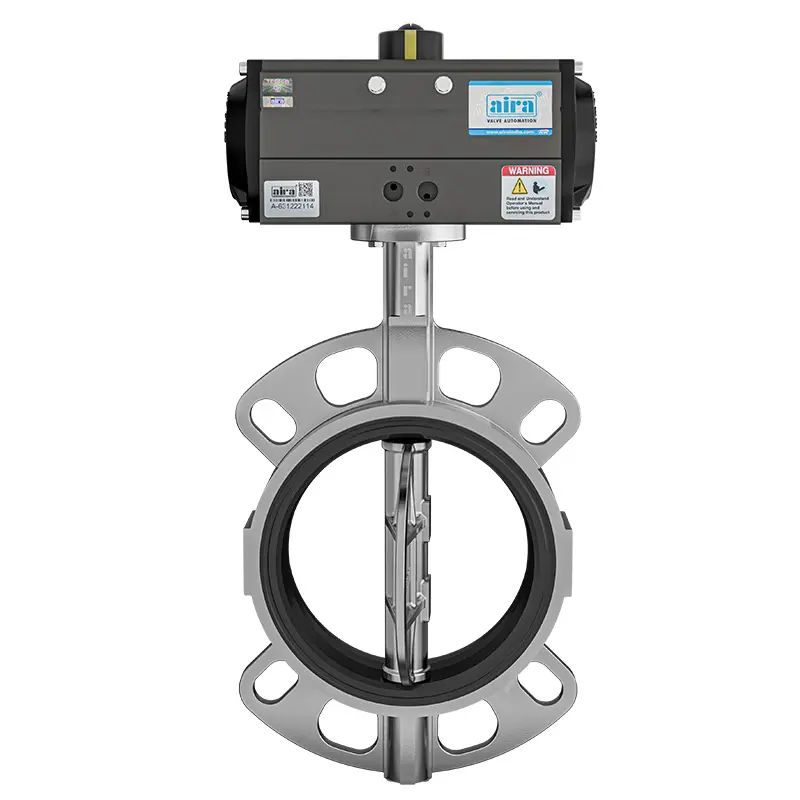

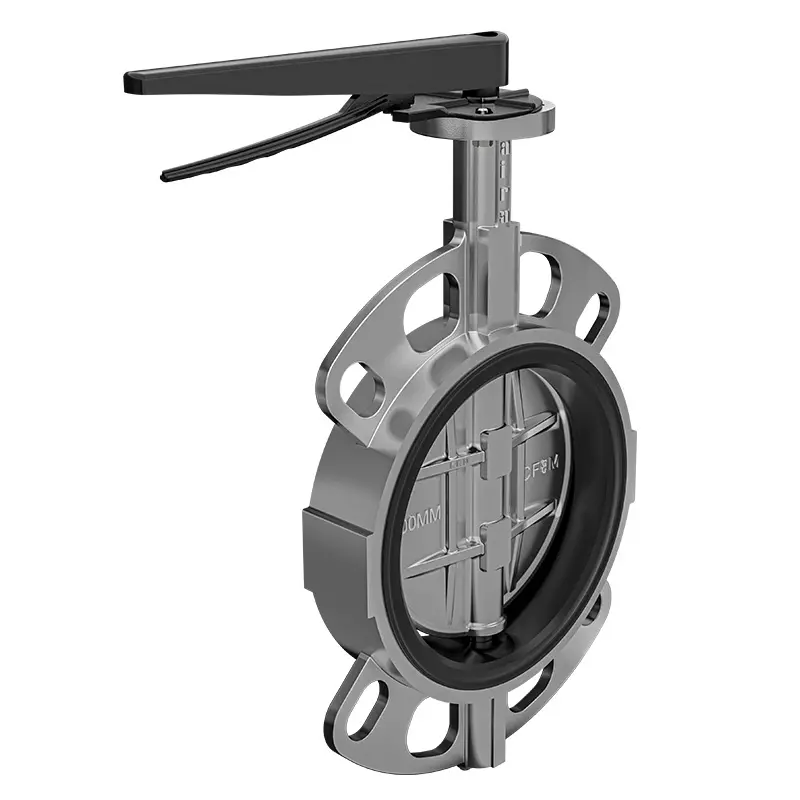

The aira Centric Inflatable Butterfly Valve offers a versatile and efficient solution for controlling fluid flow with enhanced sealing capabilities.
1 – Inflatable Sealing: Utilizes an inflatable seat to create a tight, leak-proof seal, ensuring reliable shut-off and minimizing leakage.
2 – Centric Design: Features a centric disc arrangement for smooth operation and minimal friction, enhancing valve performance and longevity.
3 – Durable Construction: Made from high-quality materials to withstand various pressures and harsh conditions.
4 – Ease of Operation: Simple to operate with a user-friendly design, facilitating quick adjustments and maintenance.
5 – Versatile Applications: Suitable for a range of industries including water treatment, chemical processing, and industrial systems.
The aira Centric Inflatable Butterfly Valve offers a versatile and efficient solution for controlling fluid flow with enhanced sealing capabilities.
1 – Inflatable Sealing: Utilizes an inflatable seat to create a tight, leak-proof seal, ensuring reliable shut-off and minimizing leakage.
2 – Centric Design: Features a centric disc arrangement for smooth operation and minimal friction, enhancing valve performance and longevity.
3 – Durable Construction: Made from high-quality materials to withstand various pressures and harsh conditions.
4 – Ease of Operation: Simple to operate with a user-friendly design, facilitating quick adjustments and maintenance.
5 – Versatile Applications: Suitable for a range of industries including water treatment, chemical processing, and industrial systems.
