3 Way Design Sanitary Ball Valve Flanged End

Specification	Details
Model	3B3F
Type	T Port, L Port

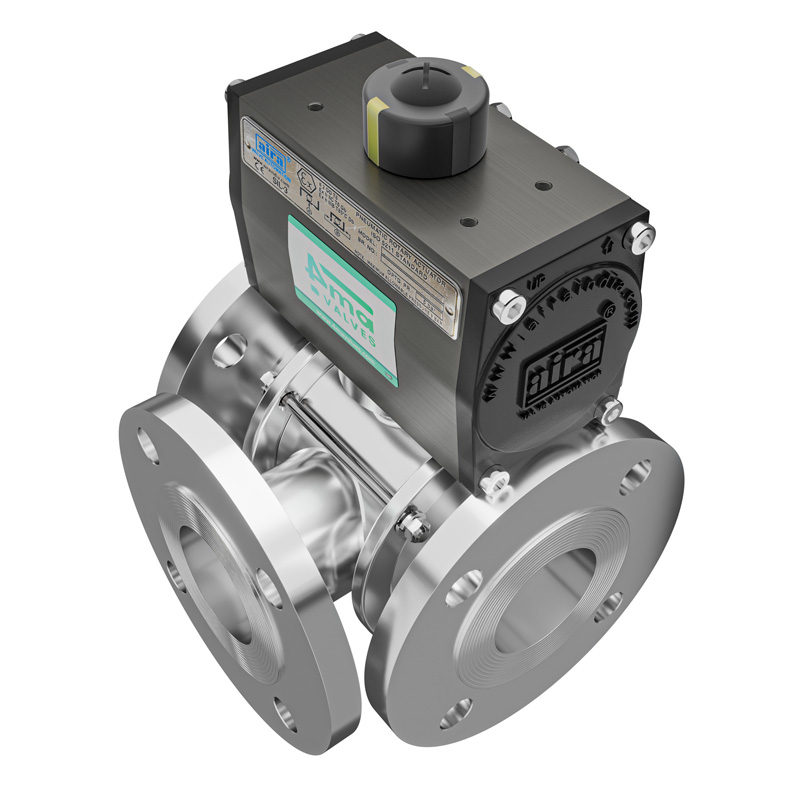

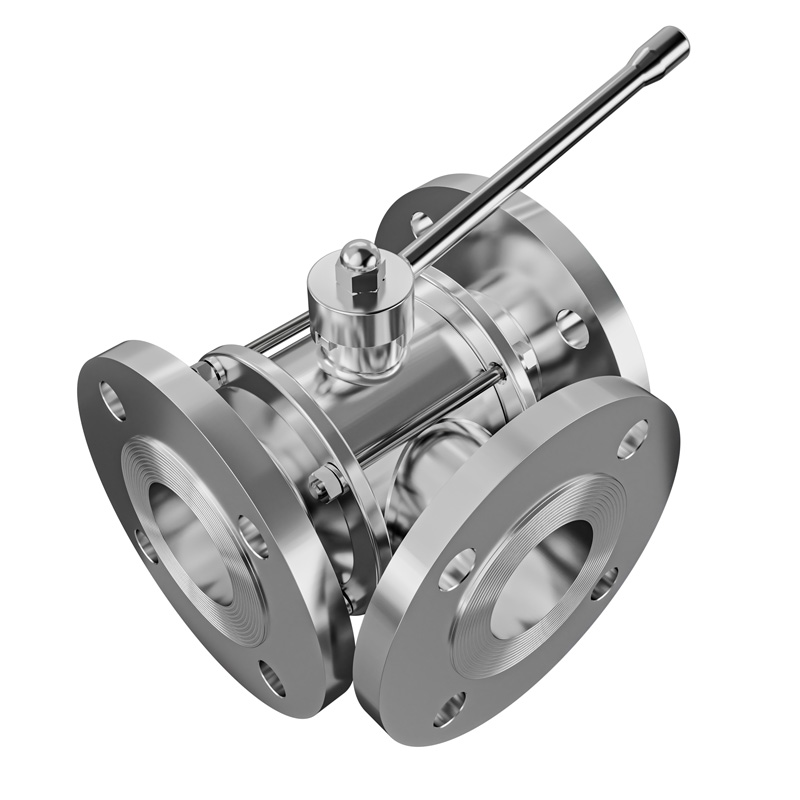

Operation	Manual (Lever & Gear Box), Pneumatic (D/A & S/A Actuator), Motorized
Sizes	1/2’’ to 4’’ (15mm to 100mm) (Higher sizes on request)
Working Pressure	Up to 10 kg/cm² (Higher pressure on request)
Temperature	Up to 180°C
Leakage	Class VI
Material of Construction	CF8 / CF8M / CF3M
Seals	PTFE / CFT / GFT
Media	Air / Gas / Water / Oil / Powder
Connection	ASME B16.5 150# (Standard), ASME B16.5 300# (On Request), BS10 Table D (On Request)
