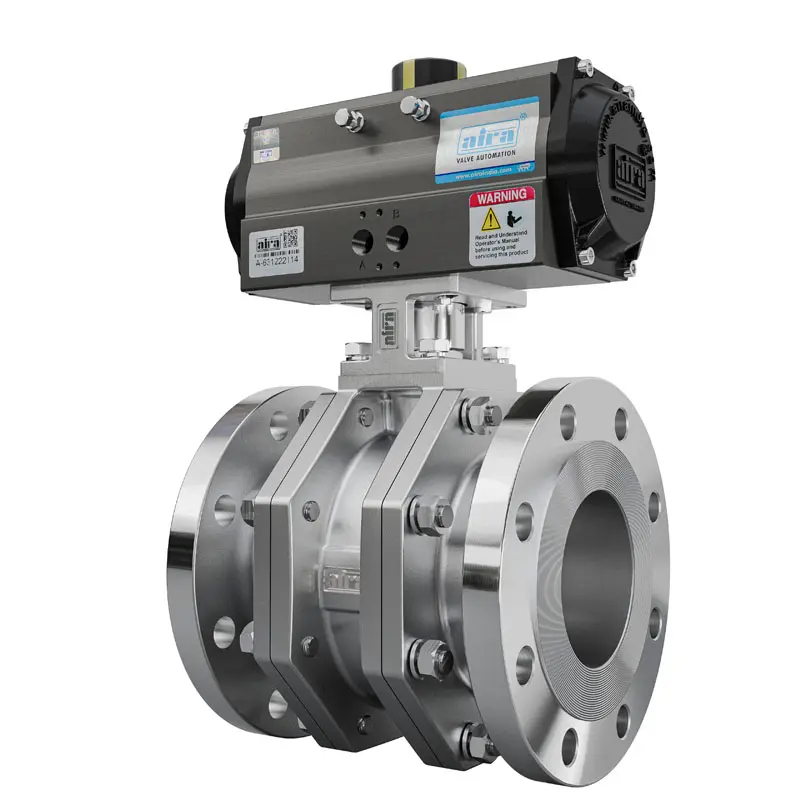

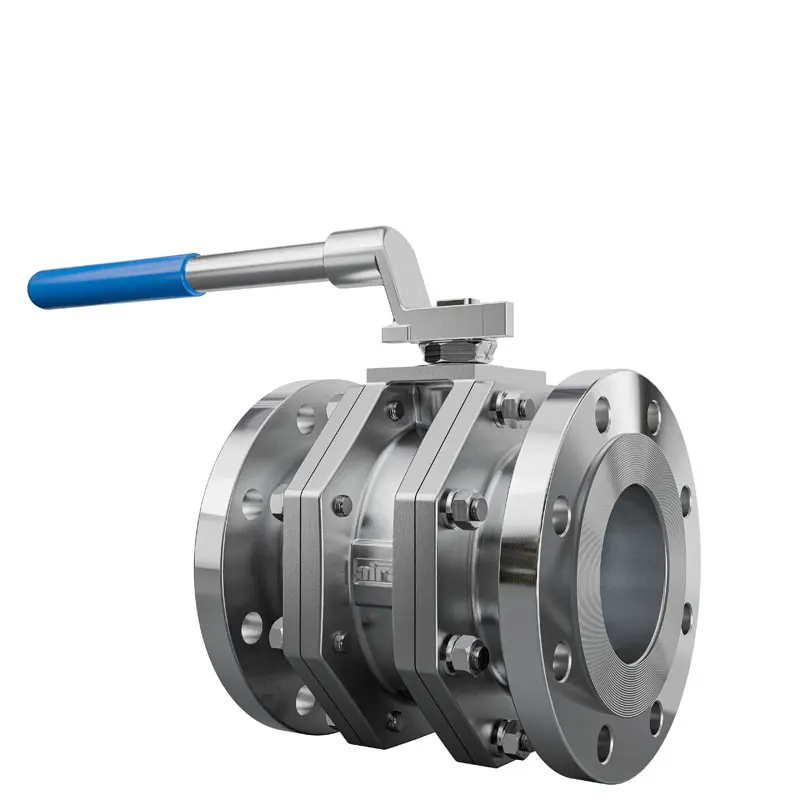

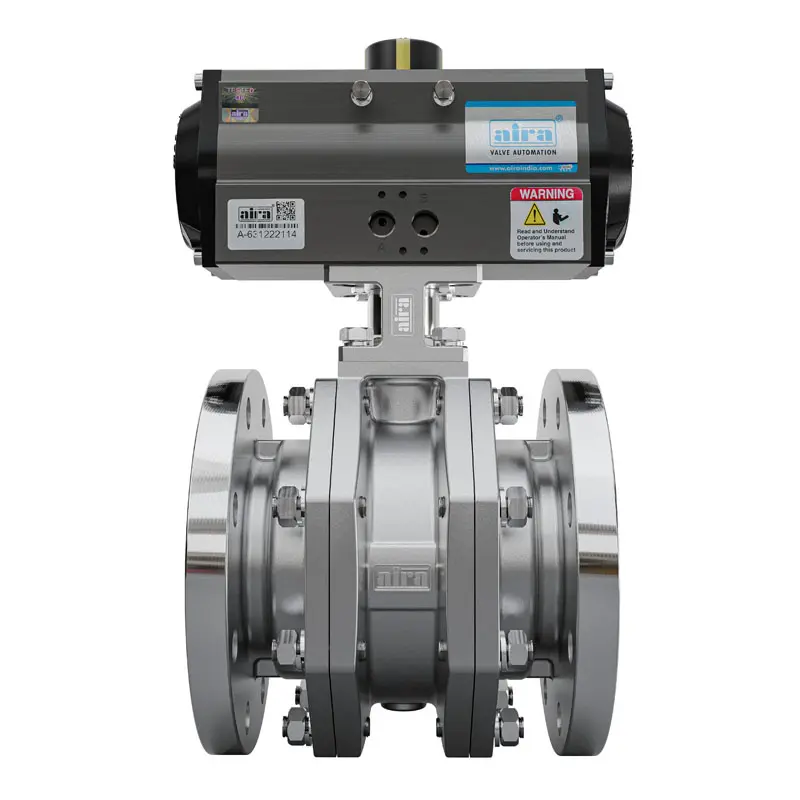

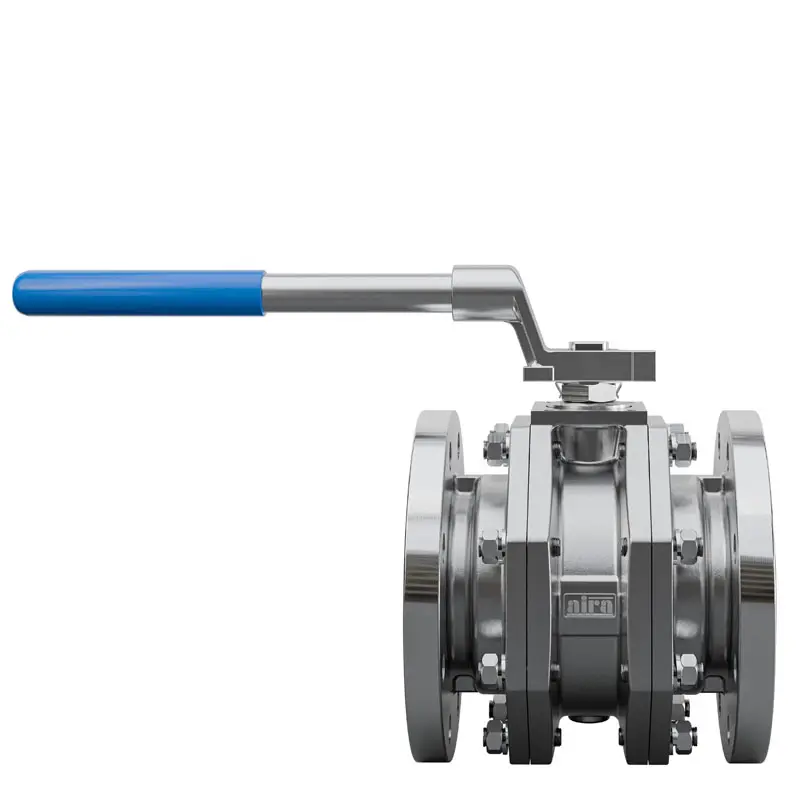

3 Piece Metal to Metal Flanged End Ball Valve Supplier in UAE

Specification & Standard

Here’s the formatted table with the new valve specifications:

Parameter	Details
Design & Manufacturer	ASME B 16.34 / BS EN ISO 17292
Valve Face To Face Dimension	ASME B 16.10
Inspection & Testing	API 598 / ISO-5208 / BS EN 12266-1
Leakage Class	ANSI FCI 70-2 Class IV – V
End Connection	ISO 7-1 for Screwed BSPT / ASME B 1.20.1 for Screwed BPT / ASME B 16.5 for Flanged 150#
Ball Material	CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type	Hollow & Solid
Certification	Design CE Approved, SIL3 Approved, POD
Size Range	1/2″ to 6″ Flanged
Temperature Range	Up to -50°C to 550°C (750°C available on request)
Pressure Class	150#
Media	Air / Steam / Oil & Gas
Leakage Class	Class IV to V, VI
Body Material	Cast Iron, Ductile Iron, S.G Iron, WCB, CF8, CF8M, CF3M, SS 304L, Duplex, Hast Alloy, Monel
Stem Material	AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel
Seat Material	SS 304, SS 316
