2 Way Fully Jacketed Plug Valve

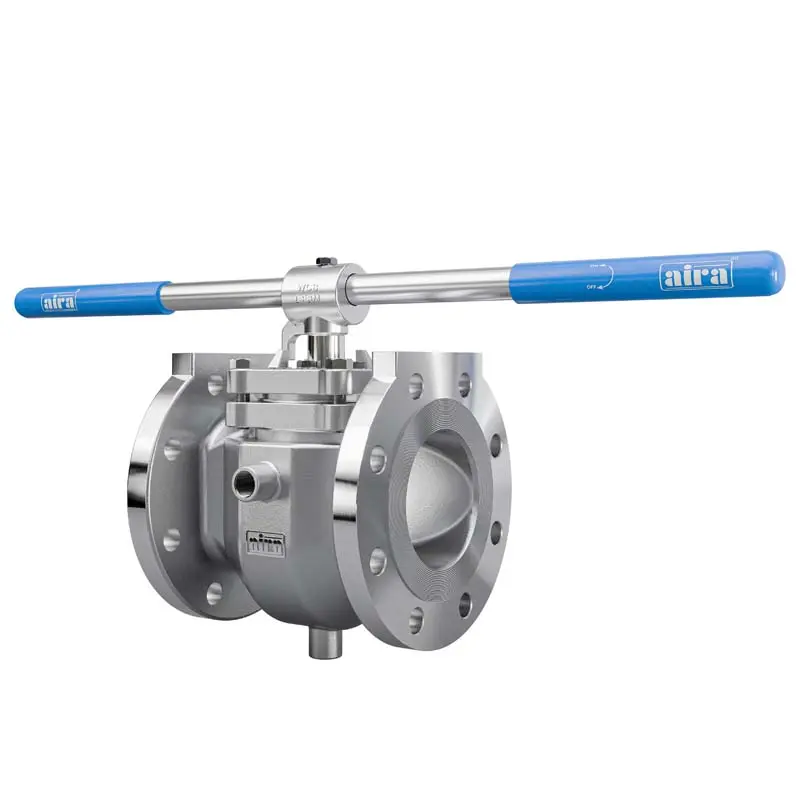

Hand Lever Operated 2 Way Fully Jacketed Plug Valve

Specification & Standard

Design & Manufacturer	API 599/ BS 5353
Inspection & Testing	API 598/ EN 12266 – 1
Media	Air / Water / Oil / Gas / Nitrogen & Chemical
Body Material	CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Plug Material	CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Seat Material	PTFE, RPTFE, CFT, GFT, TFM-1600, AIRA-250
Face To Face	ASME B 16.10
Leakage Class	Class Vi ISO – 5208
End Connection	Jacketed Type Flanged End
Size Range	1/2″ To 18″
Temperature Range	-50°C to 300°C For Soft Seated Valves. Contact Works For Special Requirement
Working Pressure	Up to 10 Kg/Cm²
Pressure Class	150#, 300#
Flanged Drilling	ASME B 16.5 Class 150#/ 300#
Certification	Design CE Approved, SIL3 Approved, IBR Approved, FIRE SAFE Approved, ISO Approved

Description

Talk to our team for orders, pricing, and quotations, fast response guaranteed.

Mark & Aira Valves

At Mark & Aira Valves, we believe that exceptional quality begins with rigorous quality control processes. Our commitment to excellence is reflected in our comprehensive inspections and evaluations conducted at every stage of production.
