Top CE certified 2 way flanged end plug valve supplier in UAE

Specification & Standard

Here is the formatted table with the specifications you provided:

Parameter	Details
Design & Manufacturer	API 599 / BS 5353
Valve Face To Face Dimension	ASME B 16.10
Inspection & Testing	API 598 / EN 12266-1
Leakage Class	Class VI ISO – 5208
End Connection	Flanged 150# & 300#
Body Material	CAST IRON (CI), DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Plug Material	CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Seat Material	PTFE, RPTFE, CFT, GFT, TFM-1600, AIRA-250
Certification	Design CE Approved, SIL3 Approved, IBR Approved, FIRE SAFE Approved, ISO Approved
Size Range	1/2” to 18”
Temperature Range	-50°C to 300°C for Soft Seated Valves (Contact for Special Requirements)
Working Pressure	Up to 10 Kg/cm²
Pressure Class	150#, 300#
Media	Air / Water / Oil / Gas / Nitrogen & Chemical
Flange Drilling	ASME B 16.5 Class 150# / 300#
Face To Face	ASME B 16.10

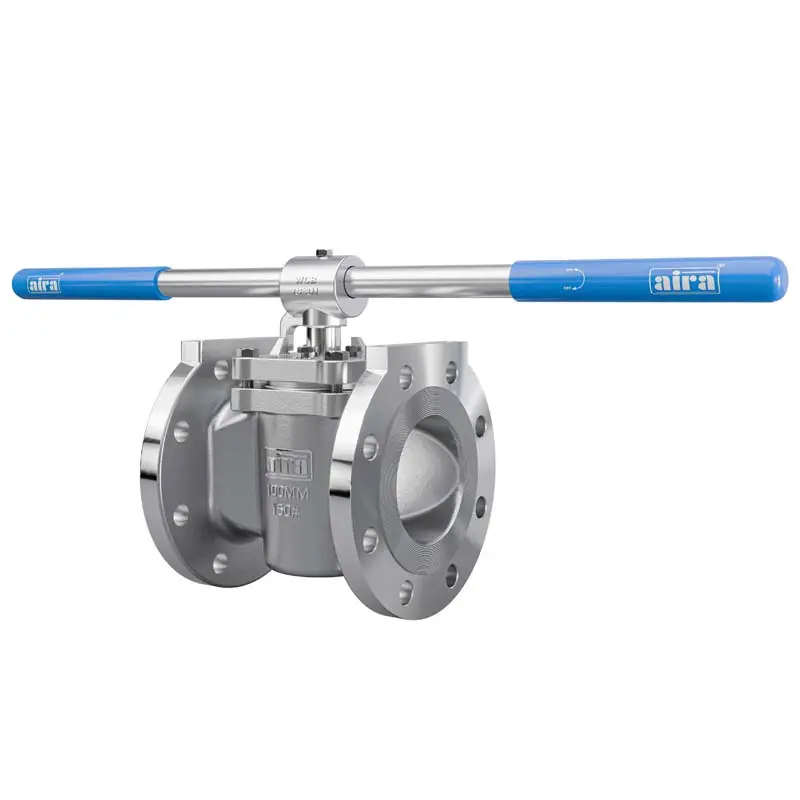

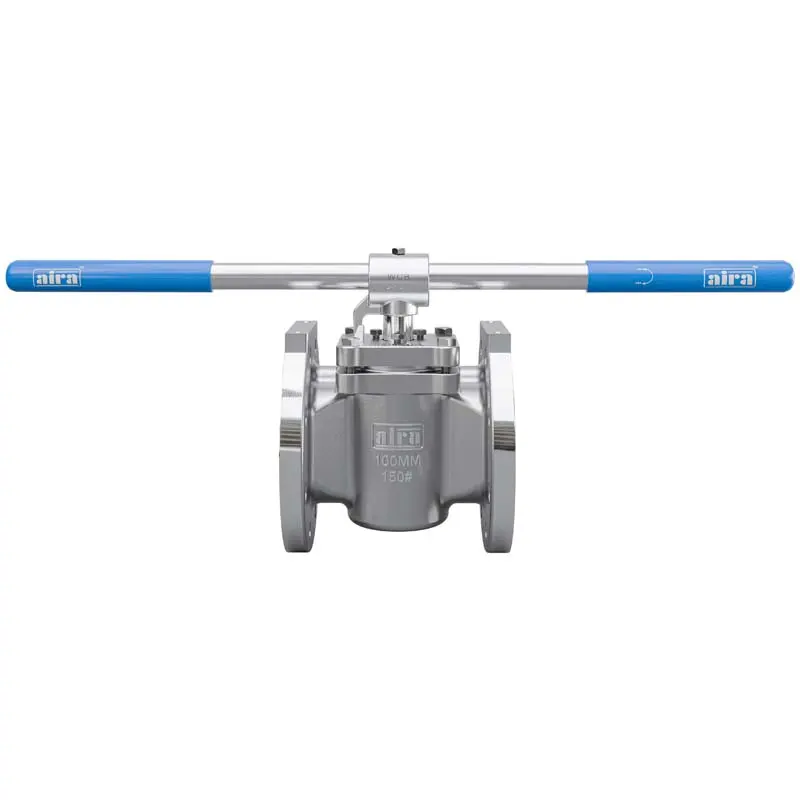

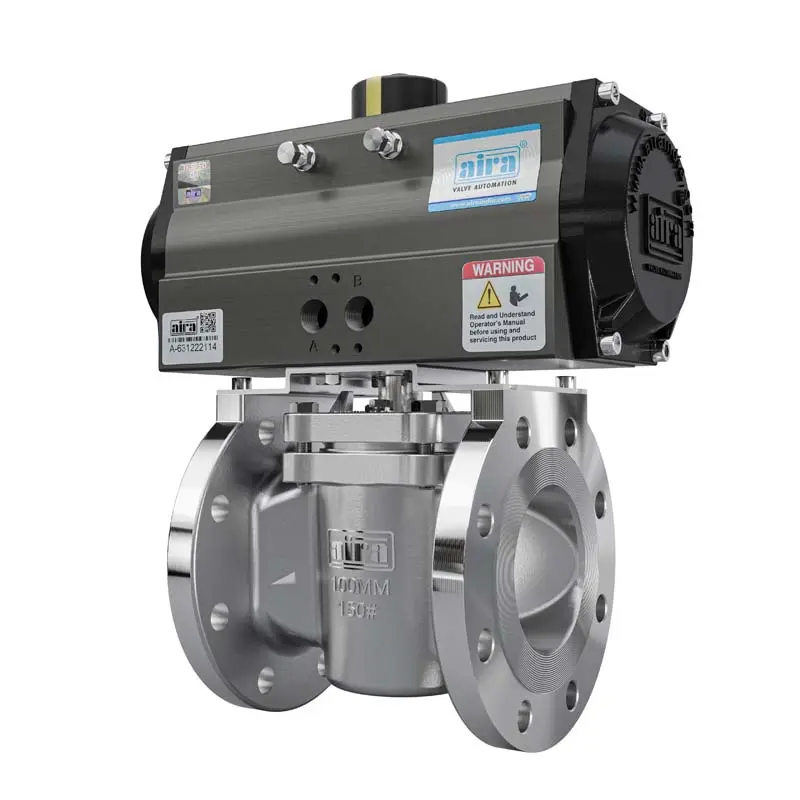

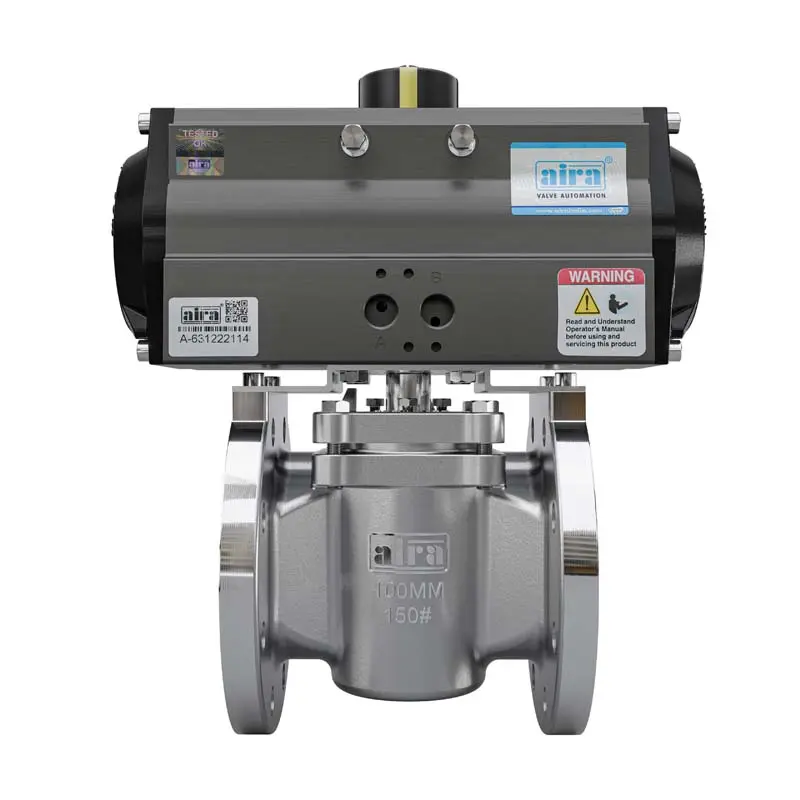

2 Way Flanged End Plug Valve
