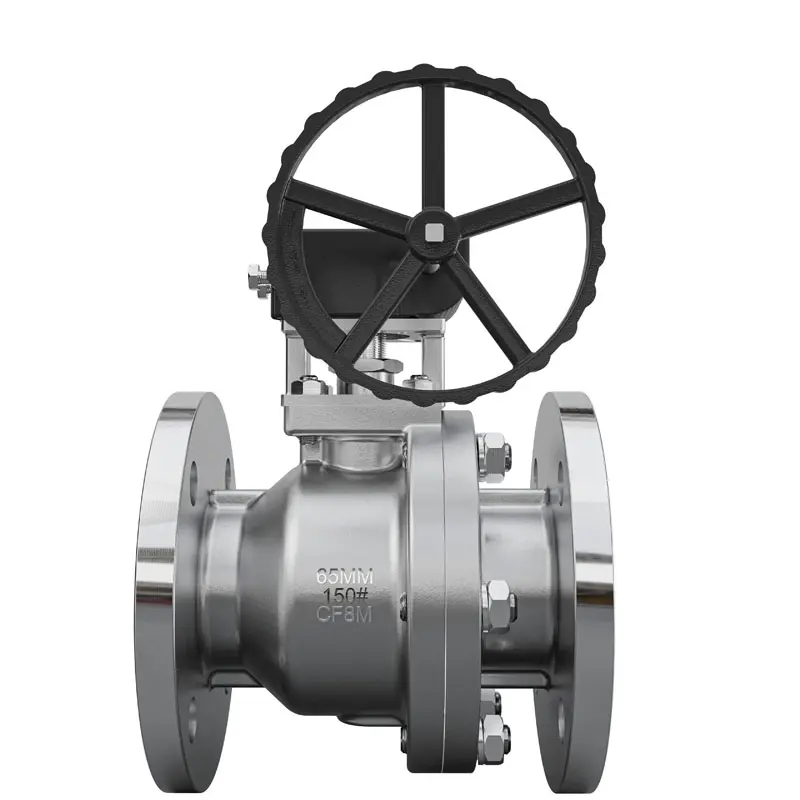

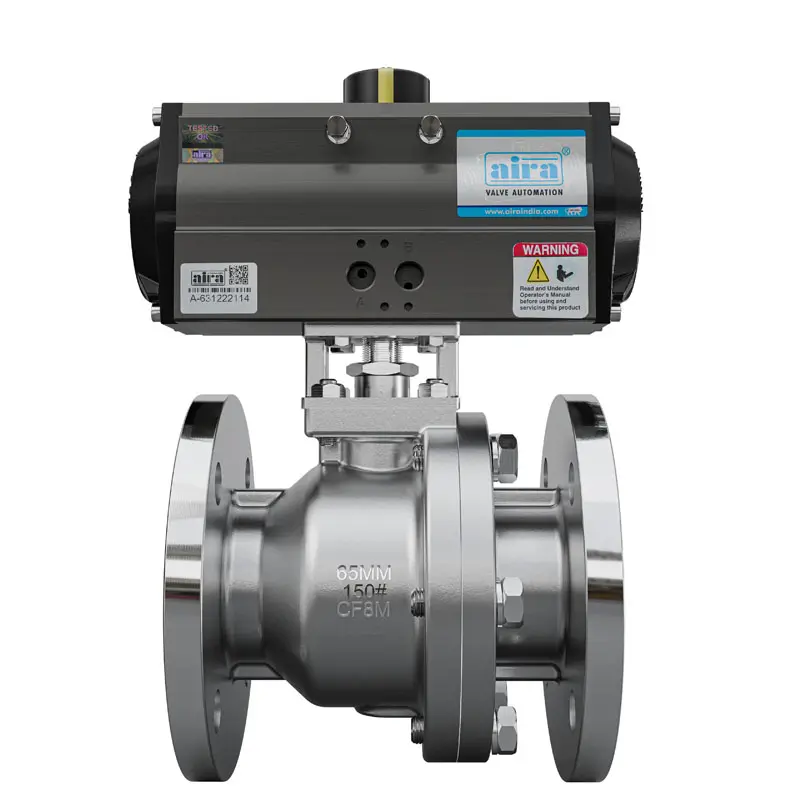

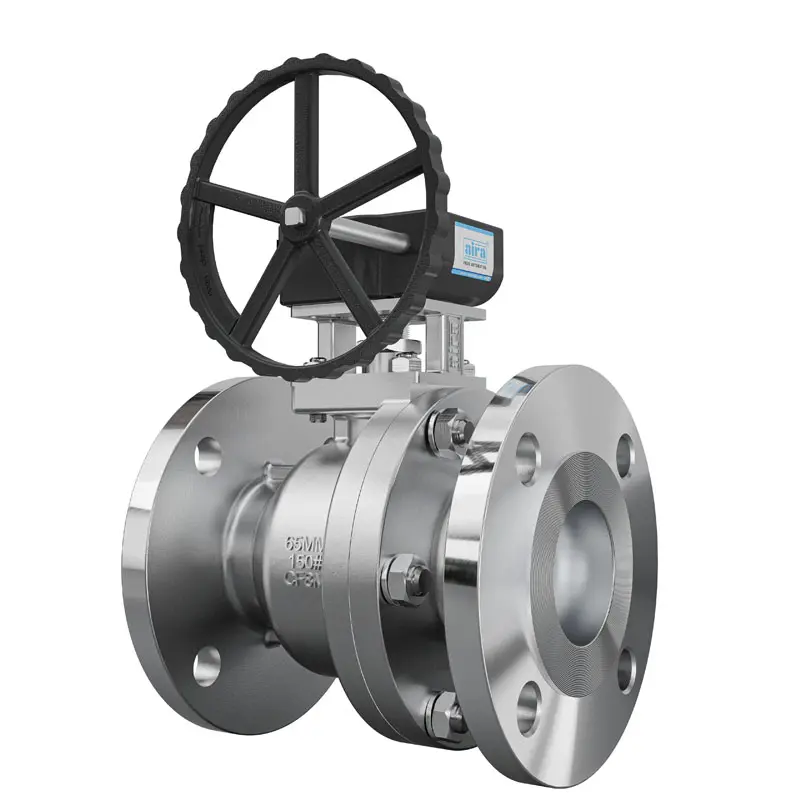

2 Piece High Performance Floating Ball Valves

Specification	Details
Design & Manufacturer	ASME B 16.34 / BS EN ISO 17292
Valve Face To Face Dimension	ASME B 16.10 / BS EN ISO 17292
Inspection & Testing	API 598 / ISO-5208 / BS EN 12266-1
Size Range	1/2″ to 12″ Flanged 150# / 300#
Fugitive Emissions	ISO 15848-1 A 2017
Ball Type	CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Material	Solid for 300# & Hollow for 150#
Stem Material	AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel
Certification	Design CE Approved, SIL3 Approved, IBR, Fire Safe
Leakage Class	ISO 5208 Class VI / FCI – 70-2 / ASME, ANSI 16,16.104 (Bubble Tight Shut Off)
End Connection	ASME B 16.5 Class 150# / 300#
Temperature Range	Up to 180°C
Pressure Class	150# , 300#
Media	Air / Water / Oil & Gas
Body Material	CAST IRON (CI), DUCTILE IRON (DI), S.G. IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Seat Material	PTFE, RPTFE, CFT, GFT, Modified PTFE, AIRA-250, NYLON, DEVLON, PEEK, D-PLASTIC
Flange Drilling	ASME B 16.5 Class 150# / 300#

Description

Features & Benefits

1- Blow- Out Proof Stem.

2- Dual Shaft Seals Eliminate Leakage.

3- Anti-Static Stem Device.

4- API 607 Fire Safe Design.

5- Mirror Finished Ball With Slot Vented Ball For Thermal Expansion.

Description

Features & Benefits

1- Blow- Out Proof Stem.

2- Dual Shaft Seals Eliminate Leakage.

3- Anti-Static Stem Device.

4- API 607 Fire Safe Design.

5- Mirror Finished Ball With Slot Vented Ball For Thermal Expansion.
